AMV Aircraft AMV-211 helicopter

Choose unit system:

Specifications Comment this helicopter

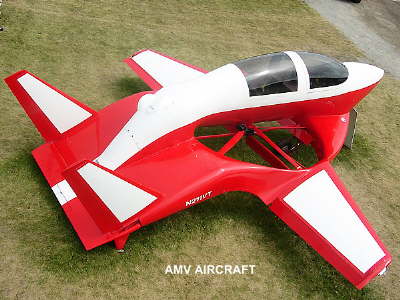

Picture AMV-211
General
Manufacturer AMV Aircraft
Type AMV-211
Introduced 1/1/2020
In production? No
Units produced 0
Price US $ 0.00
Dimensions
Overall Length 20 ft
Length 20 ft
Height 0 ft
Width 20 ft


Description Although not a helicopter, the AMV-211 is a VTOL (Vertical Take-Off and Landing) airplane. The performance of this aircraft should easily overcome the speed and range limits that are inherent in the design of a helicopter, mainly due to their upward thrust vector.

We already have convertiplanes, where the wing propellers are turned 90 degrees between take-off/landing and forward flight. This concept has proved to be very difficult to realize, and it took Bell and Boeing 20 years to develop the V-22 Osprey.

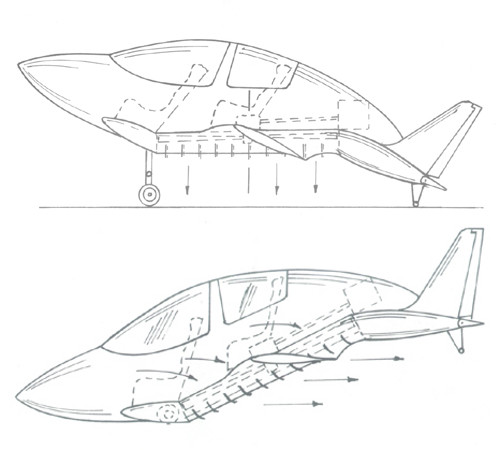

The AMV-211 is different, however. Here, it is not the propeller that is changing angle but the fuselage. Moreover, propulsion is not achieved with wing propellers, but with a large ducted fan that is driven by a turbine engine. A trust-vectoring device, using the thrust vector of the turbine engine outlet, counteracts the torque generated by the fan.

The driving force behind this enterprise is Attila Melkuti, the initiator of the project. The AMV-211 is still in the prototype phase (2013), and AMV is looking for investors.
Advertisement
Design features
  • Turbine engine thrust-vectoring device to counter the torque caused by the propeller
  • Tri-cycle wheel based landing gear
  • 5 blades graphite/kevlar 94" diameter, ducted, propeller
Description
Although not a helicopter, the AMV-211 is a VTOL (Vertical Take-Off and Landing) airplane. The performance of this aircraft should easily overcome the speed and range limits that are inherent in the design of a helicopter, mainly due to their upward thrust vector.

We already have convertiplanes, where the wing propellers are turned 90 degrees between take-off/landing and forward flight. This concept has proved to be very difficult to realize, and it took Bell and Boeing 20 years to develop the V-22 Osprey.

The AMV-211 is different, however. Here, it is not the propeller that is changing angle but the fuselage. Moreover, propulsion is not achieved with wing propellers, but with a large ducted fan that is driven by a turbine engine. A trust-vectoring device, using the thrust vector of the turbine engine outlet, counteracts the torque generated by the fan.

The driving force behind this enterprise is Attila Melkuti, the initiator of the project. The AMV-211 is still in the prototype phase (2013), and AMV is looking for investors.
- Advertisement -
Design features:
  • Turbine engine thrust-vectoring device to counter the torque caused by the propeller
  • Tri-cycle wheel based landing gear
  • 5 blades graphite/kevlar 94" diameter, ducted, propeller
Performance
Persons 2
Max. Range 660 mi
Cruise Speed 250 mph
Max. Speed 300 mph
Max. rate of Climb 4500 ft/min
HOGE ceiling 0 ft
Service Ceiling 25000 ft
Gross Weight 2300 lb
Empty Weigt 1600 lb
Useful Load 700 lb
Dynamic system
Fuel Capacity 80 gallons
Number of Engines 1
Engine Type Turbine
Engine Code Lycoming T53
Horse Power 900
Rotorhead None
Number of rotorblades 5
Rotor Diameter 0 ft
Number of tail rotorblades 0
Tailrotor Diameter 0 ft
Blueprints & model
Manufacturer Website manufacturer..
