| Picture |
|
| Manufacturer |
AgustaWestland
|
| Type |
AW139
|
| Introduced |
1/1/2003
|
| In production? |
Yes
|
| Units produced |
400
|
| Price US $ |
14,000,000.00
|

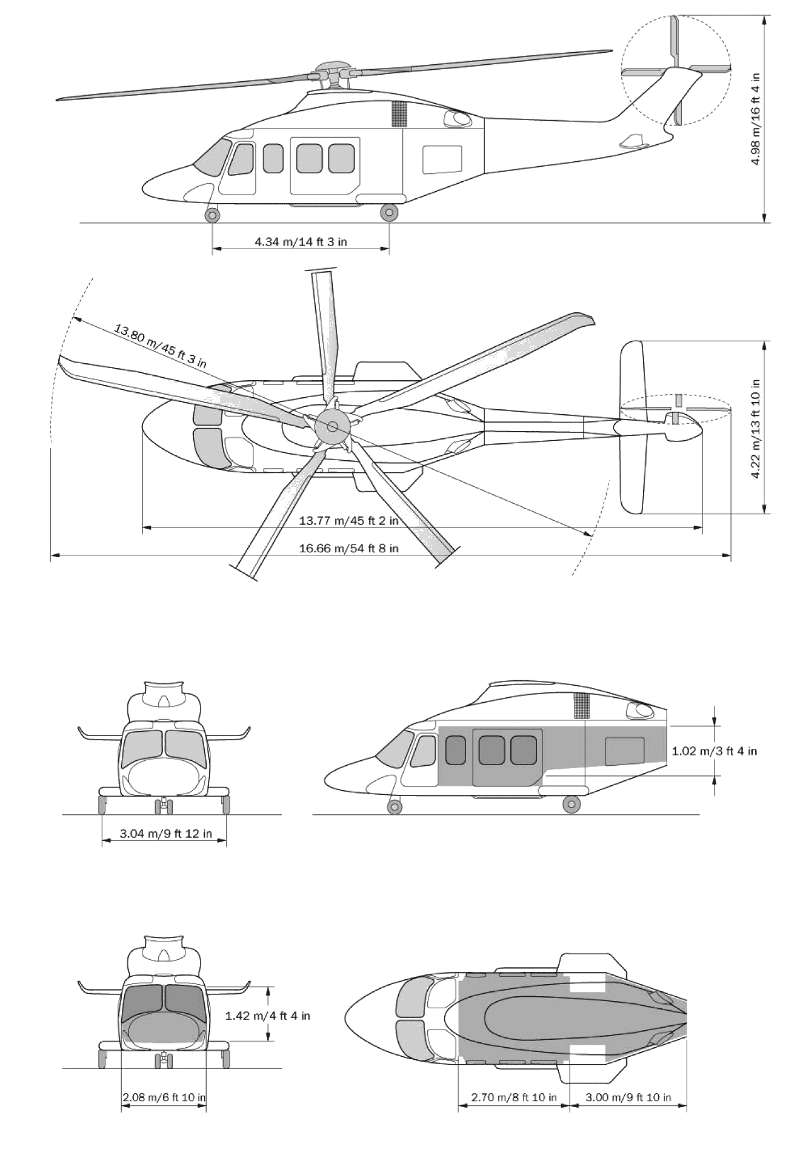

| Overall Length |
54.7 ft
|
| Length |
45.2 ft
|
| Height |
16.3 ft
|
| Width |
6.8 ft
|
| |
|
| |
|
| Description |

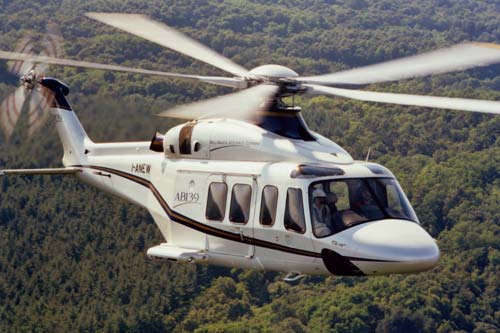

The AW139 is a conventional, twin-engined transport helicopter with a 5-blade fully articulated main rotor and a 4-blade tail rotor and retractable landing gear. It was originally designed and developed jointly by Agusta and Bell Helicopters and is marketed as the Agusta-Bell AB139.
|
| Advertisement |
|
| Design features |
- Titanium rotor hub
- Composite blades
- Retractable tricycle landing gear
|
|
The AW139 is a conventional, twin-engined transport helicopter with a 5-blade fully articulated main rotor and a 4-blade tail rotor and retractable landing gear. It was originally designed and developed jointly by Agusta and Bell Helicopters and is marketed as the Agusta-Bell AB139.
|
|
- Advertisement -
|
Design features:
- Titanium rotor hub
- Composite blades
- Retractable tricycle landing gear
|
| Persons |
17
|
| Max. Range |
742 mi
|
| Cruise Speed |
181 mph
|
| Max. Speed |
183 mph
|
| Max. rate of Climb |
2140 ft/min
|
| HOGE ceiling |
8130 ft
|
| Service Ceiling |
20000 ft
|
| Gross Weight |
14110 lb
|
| Empty Weigt |
8201 lb
|
| Useful Load |
5909 lb
|
| Fuel Capacity |
414 gallons
|
| Number of Engines |
2
|
| Engine Type |
Turbine
|
| Engine Code |
Pratt & Whitney PT6C
|
| Horse Power |
1531
|
| Rotorhead |
Fully articulated with elastomeric bearings
|
| Number of rotorblades |
5
|
| Rotor Diameter |
45.3 ft
|
| Number of tail rotorblades |
4
|
| Tailrotor Diameter |
8.8 ft
|
|
