Dr Bothezat Helicopter helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

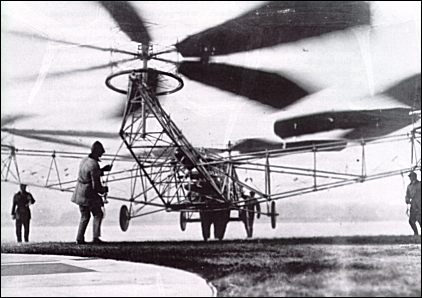

Picture Helicopter
General
Manufacturer Dr Bothezat
Type Helicopter
Introduced 1/1/1923
In production? No
Units produced 1
Price US $ 0.00
Dimensions
Overall Length 65 ft
Length 0 ft
Height 10 ft
Width 65 ft


Description Dr. Bothezat constructed a vertical flight machine in 1922 for the US Army Air Corps. It was built around an X-shaped structure with a 6-bladed rotor at the end of each of the arms. The machine made around 100 flights and achieved a maximum hover height of 11 feet. On 18th December 1922 it remained airborne for one minute and 42 seconds. It also held a payload record by lifting four people and the pilot. However, the machine was very difficult to control and the army, which was more interested in autogyros, stopped funding the project.
Advertisement
Design features
  • X-shaped structure
  • Collective pitch rotor systems
  • Direction control by differential collective pitch
  • Two horizontal propellers
Description
Dr. Bothezat constructed a vertical flight machine in 1922 for the US Army Air Corps. It was built around an X-shaped structure with a 6-bladed rotor at the end of each of the arms. The machine made around 100 flights and achieved a maximum hover height of 11 feet. On 18th December 1922 it remained airborne for one minute and 42 seconds. It also held a payload record by lifting four people and the pilot. However, the machine was very difficult to control and the army, which was more interested in autogyros, stopped funding the project.
- Advertisement -
Design features:
  • X-shaped structure
  • Collective pitch rotor systems
  • Direction control by differential collective pitch
  • Two horizontal propellers
Performance
Persons 1
Max. Range 0 mi
Cruise Speed 0 mph
Max. Speed 0 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 0 ft
Service Ceiling 11 ft
Gross Weight 3527 lb
Empty Weigt 0 lb
Useful Load 0 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 1
Engine Type Rotary
Engine Code Bentley BR-2
Horse Power 220
Rotorhead Quad tandem
Number of rotorblades 6
Rotor Diameter 26.6 ft
Number of tail rotorblades 0
Tailrotor Diameter 0 ft
Blueprints & model
Manufacturer Website manufacturer..
