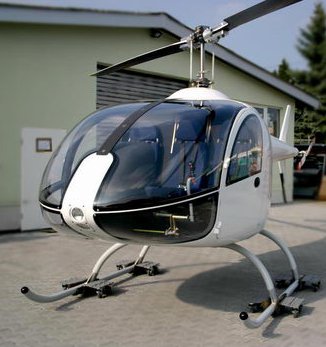

| Picture |
|
| Manufacturer |
MK Helicopter
|
| Type |
MK3
|
| Introduced |
1/1/2020
|
| In production? |
No
|
| Units produced |
|
| Price US $ |
300,000.00
|
| Overall Length |
32.5 ft
|
| Length |
25.3 ft
|
| Height |
9.6 ft
|
| Width |
5.6 ft
|
| |
|
| |
|
| Description |
Helicopter designers and entrepreneurs can easily forget that the development of a prototype (up to very high professional standards) and the certification process necessary to enter full scale production and achieve sales are two very distinct things. The MK-Helicopter is yet another example of an aircraft that seems to be stuck between these two phases.
The development of the MK 3 started in 1995 with its forerunner the MK 2. This was a two-seater model powered by a diesel engine. These engine types are seldom seen in aircraft due to their relative high mass to power ratio. There was only one prototype built of the MK-2. Years later, in 2006, the MK-3 was introduced at the 2006 ILA in Berlin, powered by the same diesel engine. This three-seater model is clearly derived from the MK-2. The frame is built from aluminium tubes and the cabin can be equipped with a glass cockpit. The design is modern looking, with its large nose window section giving the pilot and passengers an excellent view.
Time will tell if the MK-helicopter is able to attract financial investors so that it can move onto the next phase, certification.
|
| Advertisement |
|
| Design features |
- Composite hull
- Composite main rotor blades
- Aluminum tail rotor blades
- Singe stage bevel gearbox
- Belt driven main rotor
- Skid type landing gear
|
Helicopter designers and entrepreneurs can easily forget that the development of a prototype (up to very high professional standards) and the certification process necessary to enter full scale production and achieve sales are two very distinct things. The MK-Helicopter is yet another example of an aircraft that seems to be stuck between these two phases.
The development of the MK 3 started in 1995 with its forerunner the MK 2. This was a two-seater model powered by a diesel engine. These engine types are seldom seen in aircraft due to their relative high mass to power ratio. There was only one prototype built of the MK-2. Years later, in 2006, the MK-3 was introduced at the 2006 ILA in Berlin, powered by the same diesel engine. This three-seater model is clearly derived from the MK-2. The frame is built from aluminium tubes and the cabin can be equipped with a glass cockpit. The design is modern looking, with its large nose window section giving the pilot and passengers an excellent view.
Time will tell if the MK-helicopter is able to attract financial investors so that it can move onto the next phase, certification.
|
|
- Advertisement -
|
Design features:
- Composite hull
- Composite main rotor blades
- Aluminum tail rotor blades
- Singe stage bevel gearbox
- Belt driven main rotor
- Skid type landing gear
|
| Persons |
3
|
| Max. Range |
551 mi
|
| Cruise Speed |
120 mph
|
| Max. Speed |
130 mph
|
| Max. rate of Climb |
900 ft/min
|
| HOGE ceiling |
7000 ft
|
| Service Ceiling |
15000 ft
|
| Gross Weight |
2600 lb
|
| Empty Weigt |
1540 lb
|
| Useful Load |
1060 lb
|
| Fuel Capacity |
47 gallons
|
| Number of Engines |
1
|
| Engine Type |
Piston, 4 cylinder diesel
|
| Engine Code |
SMA SR305
|
| Horse Power |
226
|
| Rotorhead |
Semi articulated
|
| Number of rotorblades |
2
|
| Rotor Diameter |
29.5 ft
|
| Number of tail rotorblades |
2
|
| Tailrotor Diameter |
4.9 ft
|
|
