Mil Mi-2 T / Hoplite helicopter

Choose unit system:

Specifications Comment this helicopter
Picture Mi-2T__Hoplite
General
Manufacturer Mil
Type Mi-2 T / Hoplite
Introduced 1/1/1965
In production? No
Units produced 7200
Price US $ 72,500.00
Dimensions
Overall Length 57.2 ft
Length 39.4 ft
Height 12.3 ft
Width 0 ft


Description

The Mil Mi-2 (NATO code name 'Hoplite') is a light twin-turbine utility helicopter. Its design is similar to the Mi-1, although the piston engine is replaced by two turbine engines placed on the roof. This created much more cabin space.

Similar to the introduction of the Mi-4, the Mi-2 design is also believed to have been a reaction to a new American product, the Bell 204A 'Huey', which very successfully exploited the idea of using a turbine engine and placing it on the roof of an aircraft.

The Mi-2’s turbine engines produced about 40% more power for half the weight of the Mi-1’s piston engine. As a result, the performance of the Mi-2 was a dramatic improvement. Combined with the increased cabin room, the machine could carry up to eight passengers.

The Mi-2 was produced exclusively in Poland by PZL Swidznik. In good Mil tradition, more than 5000 units were built.

Advertisement
Design features
  • Tricycle, non retractable, landing gear
  • Tailskid
  • Hydraulic powered flight controls
  • Fuselage of sheet duralumin
Description

The Mil Mi-2 (NATO code name 'Hoplite') is a light twin-turbine utility helicopter. Its design is similar to the Mi-1, although the piston engine is replaced by two turbine engines placed on the roof. This created much more cabin space.

Similar to the introduction of the Mi-4, the Mi-2 design is also believed to have been a reaction to a new American product, the Bell 204A 'Huey', which very successfully exploited the idea of using a turbine engine and placing it on the roof of an aircraft.

The Mi-2’s turbine engines produced about 40% more power for half the weight of the Mi-1’s piston engine. As a result, the performance of the Mi-2 was a dramatic improvement. Combined with the increased cabin room, the machine could carry up to eight passengers.

The Mi-2 was produced exclusively in Poland by PZL Swidznik. In good Mil tradition, more than 5000 units were built.

- Advertisement -
Design features:
  • Tricycle, non retractable, landing gear
  • Tailskid
  • Hydraulic powered flight controls
  • Fuselage of sheet duralumin
Performance
Persons 9
Max. Range 212 mi
Cruise Speed 119 mph
Max. Speed 138 mph
Max. rate of Climb 886 ft/min
HOGE ceiling 0 ft
Service Ceiling 13120 ft
Gross Weight 8157 lb
Empty Weigt 5214 lb
Useful Load 2943 lb
Dynamic system
Fuel Capacity 158 gallons
Number of Engines 2
Engine Type Turbine
Engine Code Klimov GTD-350P
Horse Power 604
Rotorhead Fully articulated
Number of rotorblades 3
Rotor Diameter 47.6 ft
Number of tail rotorblades 2
Tailrotor Diameter 8.9 ft

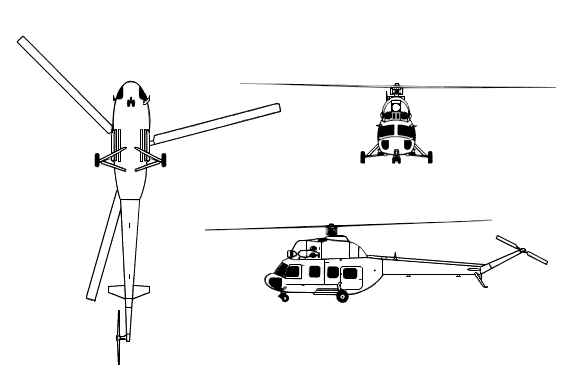

Blueprints & model
Manufacturer Website manufacturer..
