Mil Mi-34S2 Sapsan helicopter

Choose unit system:

Specifications Comment this helicopter

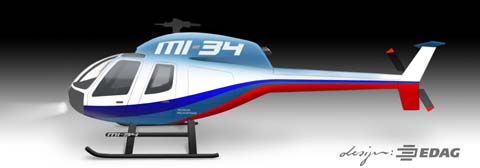

Picture Mi-34S2_Sapsan
General
Manufacturer Mil
Type Mi-34S2 Sapsan
Introduced 1/1/2020
In production? No
Units produced 0
Price US $ 1,100,000.00
Dimensions
Overall Length 0 ft
Length 0 ft
Height 0 ft
Width 0 ft


Description The Sapsan (Russian for peregrine falcon) is a five-seater, lightweight utility and training helicopter. It is similar to a Mi-34, with its combustion engine replaced by the French Turbomeca Arrius-2F turbo shaft engine. This adds a lot of power along with an engine weight reduction by a factor of two. The Turbomeca Arrius-2F engine also has a good international reputation, and is widely used in light helicopter models. These factors should all contribute to a second life for the Mi-34S2 Sapsan.

The Mi-34S2 will have to compete with models like Eurocopter's EC120. First deliveries are planned for 2016, but Russian Helicopters has stated that it will only start production when it has received enough orders. The Sapsan can be ordered with Russian or Western avionics.
Advertisement
Design features
Description
The Sapsan (Russian for peregrine falcon) is a five-seater, lightweight utility and training helicopter. It is similar to a Mi-34, with its combustion engine replaced by the French Turbomeca Arrius-2F turbo shaft engine. This adds a lot of power along with an engine weight reduction by a factor of two. The Turbomeca Arrius-2F engine also has a good international reputation, and is widely used in light helicopter models. These factors should all contribute to a second life for the Mi-34S2 Sapsan.

The Mi-34S2 will have to compete with models like Eurocopter's EC120. First deliveries are planned for 2016, but Russian Helicopters has stated that it will only start production when it has received enough orders. The Sapsan can be ordered with Russian or Western avionics.
- Advertisement -
Design features:
Performance
Persons 5
Max. Range 528 mi
Cruise Speed 137 mph
Max. Speed 165 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 12800 ft
Service Ceiling 19680 ft
Gross Weight 0 lb
Empty Weigt 3197 lb
Useful Load 1323 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 1
Engine Type Turbine
Engine Code Turbomeca Arrius 2F
Horse Power 504
Rotorhead
Number of rotorblades 4
Rotor Diameter 0 ft
Number of tail rotorblades 2
Tailrotor Diameter 0 ft
Blueprints & model
Manufacturer Website manufacturer..
